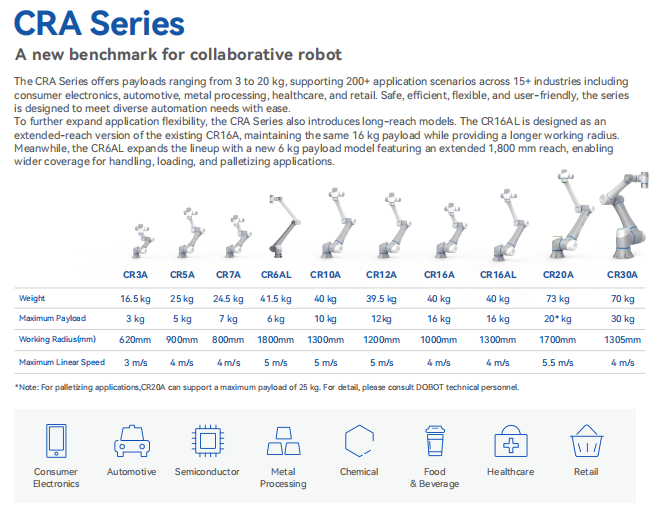

DOBOT CRA Series offers payloads from 3 to 30 kg with working radius 620–1800 mm. Supports 200+ application scenarios across 15+ industries. Features SafeSkin and BLOCKLY programming.
| Payload | 3–30 kg |
| Reach | 620–1800 mm |
| Repeatability | ±0.02–0.05 mm |
| Speed | Up to 5.5 m/s |
| IP Rating | IP54 |
| Models | CR3A / CR5A / CR7A / CR10A / CR12A / CR16A / CR20A / CR30A |

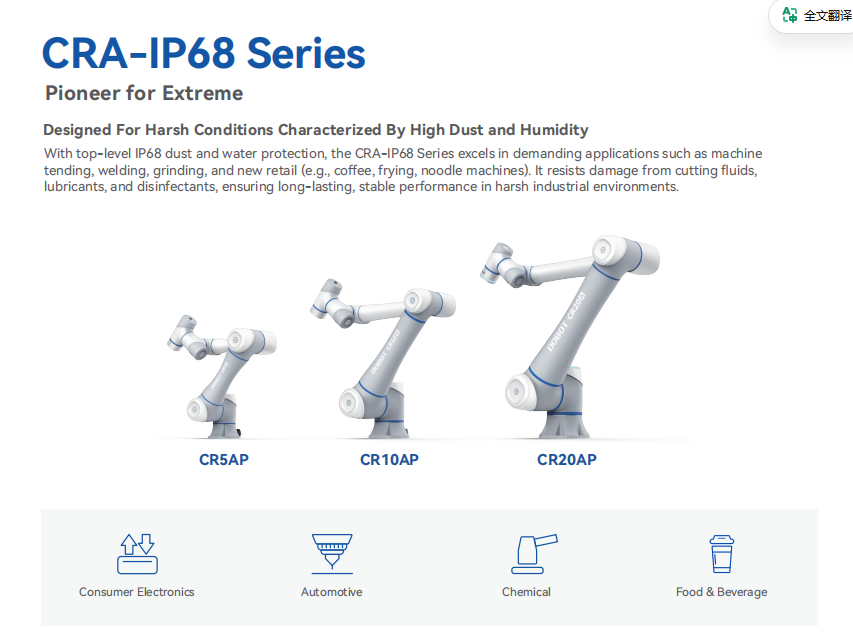

IP68-rated cobots resistant to cutting fluids, lubricants, and disinfectants. Ideal for harsh environments including machine tending, welding, grinding, and food service.
| Protection | IP68 |
| Payload | 5–20 kg |
| Reach | 900–1700 mm |
| Repeatability | ±0.02–0.05 mm |
| Models | CR5AP / CR10AP / CR20AP |
| Applications | Machine tending, welding, food service |

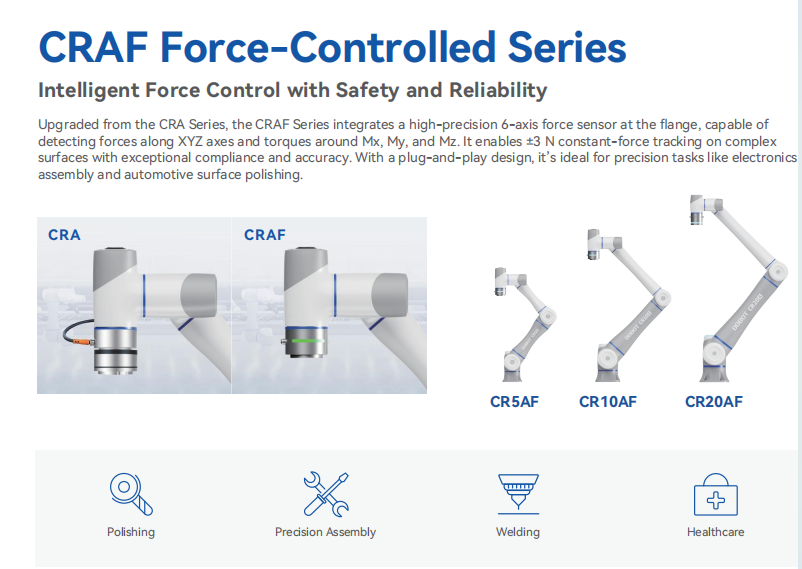

Integrated 6-axis high-precision force sensor enabling ±3N constant force tracking. Ideal for precision tasks such as polishing, assembly, and medical applications.
| Force Sensing | 6-axis, ±3N tracking |
| Payload | 5–20 kg |
| Reach | 900–1700 mm |
| Repeatability | ±0.02–0.05 mm |
| Models | CR5AF / CR10AF / CR20AF |
| Applications | Polishing, assembly, medical, welding |

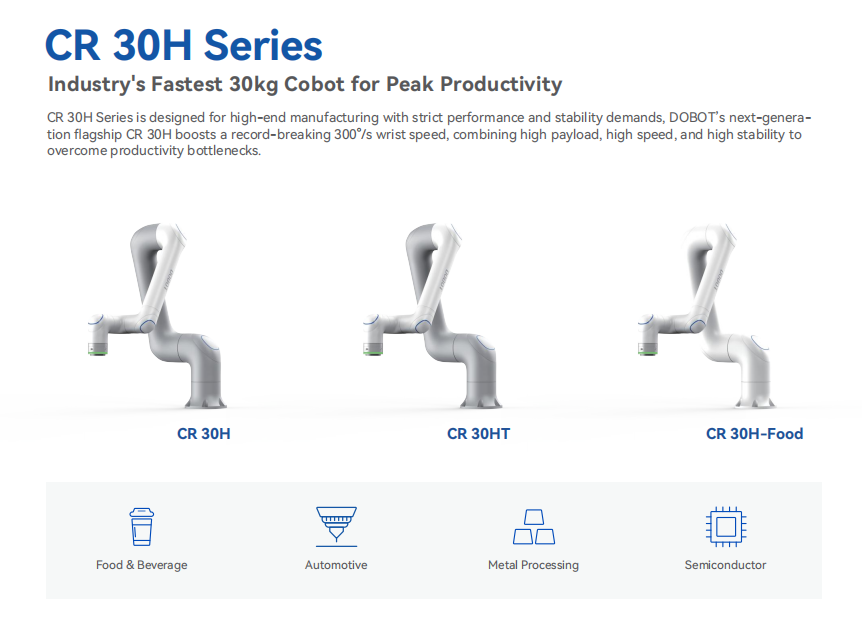

Record-breaking 300°/s wrist speed with 30kg payload. Designed for high-end manufacturing with high payload, high speed, and high stability.
| Payload | 30 kg |
| Reach | 1800 mm |
| Wrist Speed | 300°/s |
| IP Rating | IP65–IP67 |
| Models | CR30H / CR30HT / CR30H-Food |
| Applications | Metal processing, automotive, food, semiconductor |

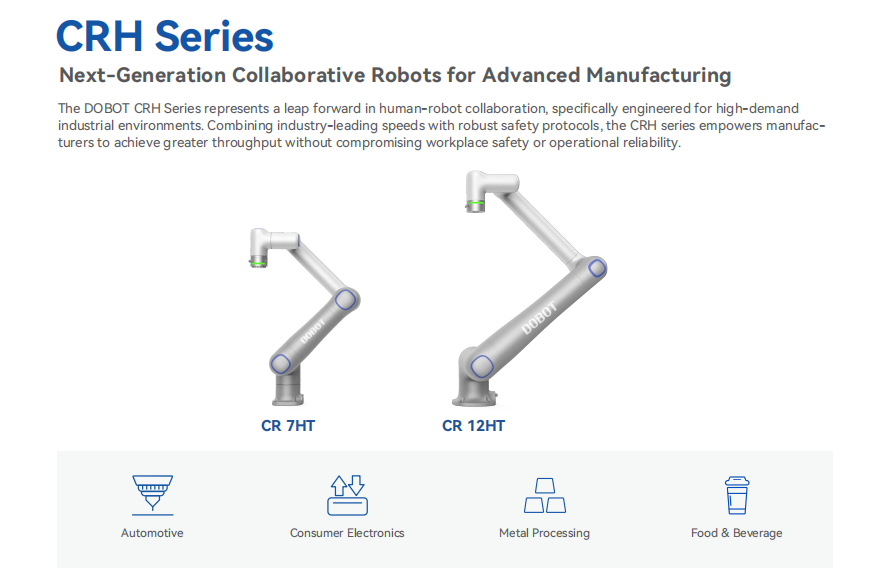

Next-generation collaborative robots for advanced manufacturing. Industry-leading speeds combined with robust safety protocols for high-demand industrial environments.
| Payload | 7–12 kg |
| Speed | Industry-leading |
| Safety | Advanced safety protocols |
| Models | CR7HT / CR12HT |
| Applications | Automotive, consumer electronics, metal processing |

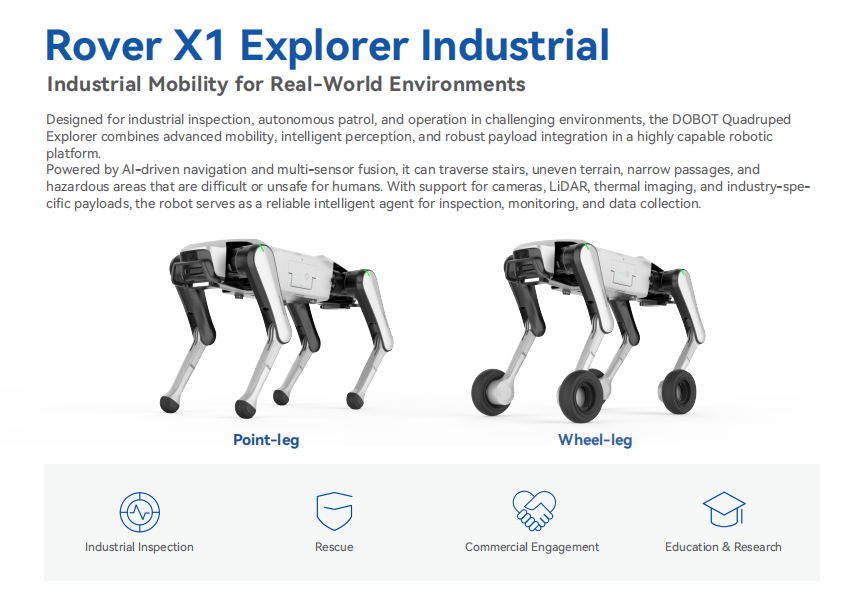

AI-driven navigation and multi-sensor fusion. Capable of traversing stairs, uneven terrain, and narrow passages. Supports cameras, LiDAR, thermal imaging payloads.
| Type | Point-leg / Wheel-leg |
| Navigation | AI + multi-sensor fusion |
| Terrain | Stairs, uneven, narrow |
| Payload | Expandable (cameras, LiDAR, thermal) |
| Applications | Industrial inspection, patrol, rescue |

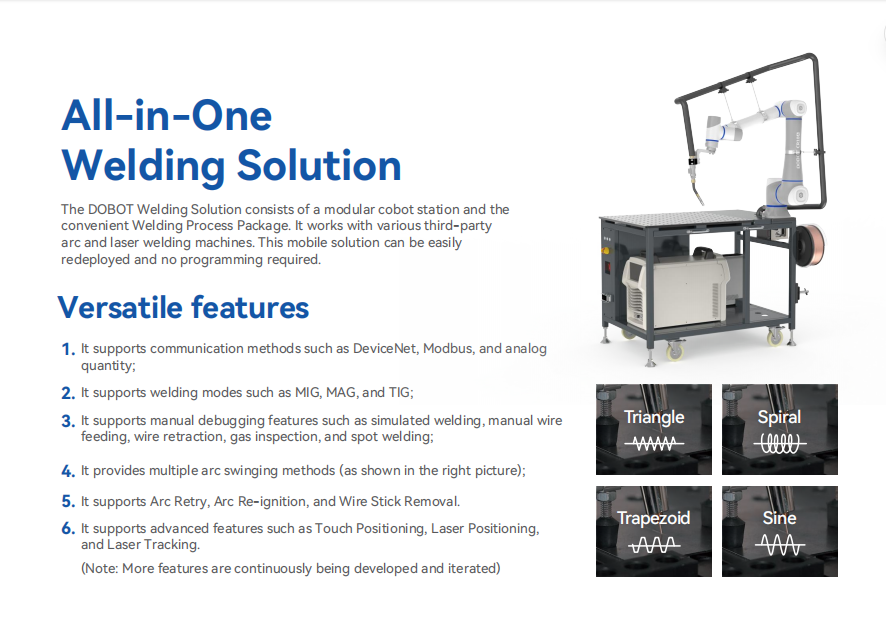

Complete collaborative robot welding solution. Supports MIG/MAG/TIG welding modes, compatible with third-party arc/laser welding equipment. No programming required, movable deployment.
| Welding Modes | MIG / MAG / TIG |
| Compatibility | Arc & laser welding |
| Communication | DeviceNet / Modbus |
| Features | Arc swing, arc retry, manual teach |
| Deployment | No programming, movable |

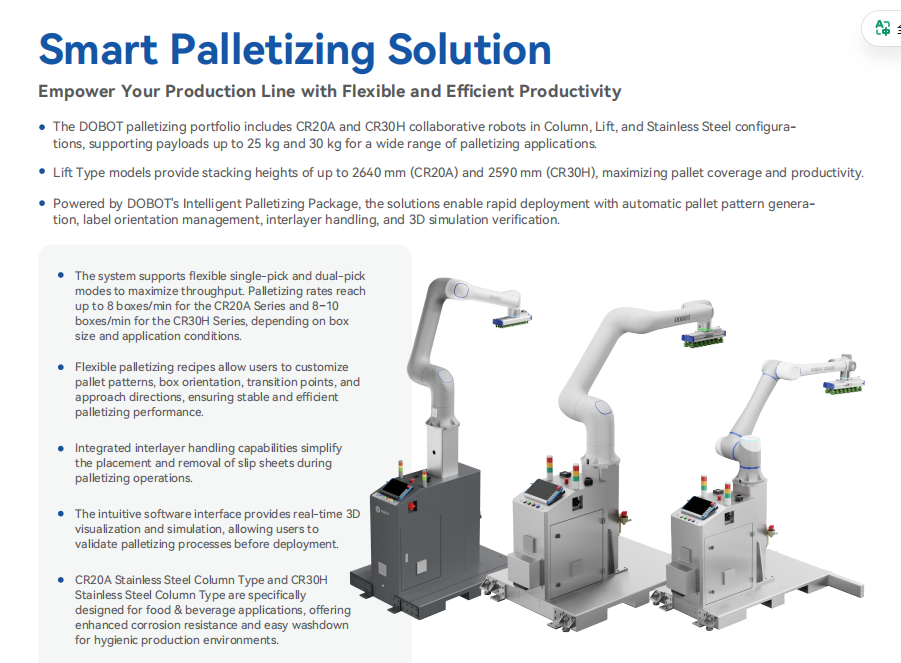

Automated palletizing solution with auto pattern generation, 3D simulation, and custom recipes. Up to 8–10 boxes/min with stainless steel option for food industry.
| Max Payload | 30 kg |
| Stack Height | 2590–2640 mm |
| Speed | 8–10 boxes/min |
| Compatible | CR20A / CR30H |
| Features | Auto pattern, 3D simulation, custom recipe |
| Food Grade | Stainless steel option |
